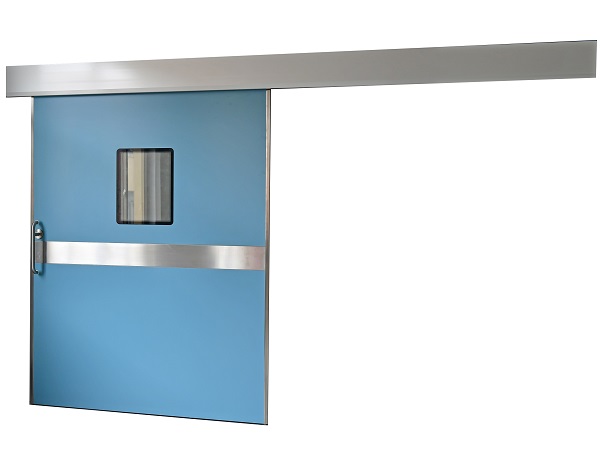

LSQ Automatic Hermetic Sliding Door
Product Details
Features:
1. The door leaf consists of honeycomb paper faced with galvanized steel sheet or stainless steel on both sides. There are
rubber seal on four sides of door leaf, clinging to three aluminum posts (with rubber seal in the middle) against wall.
2. The door leaf will sink before full close, make room hermetic.
3. Safety anti-pinch function, automatic reverse when encountering people or objects.
4. 24VDC, 100W, brushless motor.
Application:
Hospital, Clean room entrance etc
Technical Data:
|
Weight |
< 180kg(single leaf) < 180kg*2(double leaf) |
|
Speed |
150~500mm/S |
|
Hold open time |
1~25S |
| Power supply |
220V AC+10%, 50/60 HZ |
|
Operating temperature |
-20℃~50℃ |

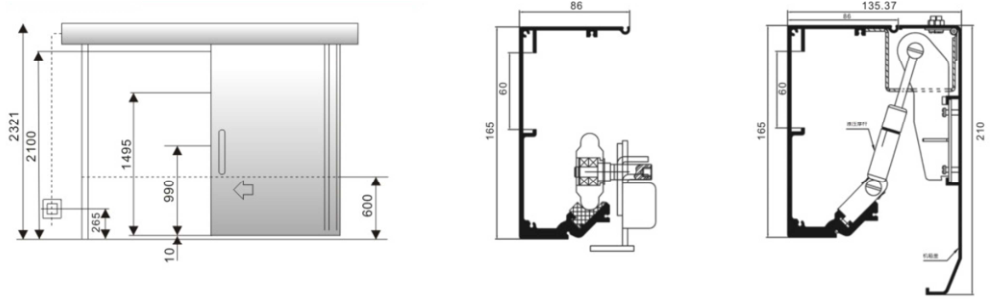

Drawing:
