SW80A Automatic Swing Door Operator
Product Details
Features:
1. Safety anti-pinch function, automatic reverse when encountering people or objects.
2. 24VDC, 55 W, brushless motor. Spline connection between motor shaft and arm, worn-resistant.
3. Use programmer, to change speed, hold open time etc.
4. Either sliding arm (pull in) or articulated arm (push out) is available.
5. Length for double leaf is optional.
Application:
Hospital, Super market, convenient store, Shop front, Restaurant, Hotel, Office, Clean room entrance etc.
Technical Data:
|
Weight |
< 180kg |
|
Speed |
150~500mm/S |
|
Hold open time |
1~99S |
|
Power supply |
220V AC+10%, 50/60 HZ |
|
Operating temperature |
-20℃~50℃ |

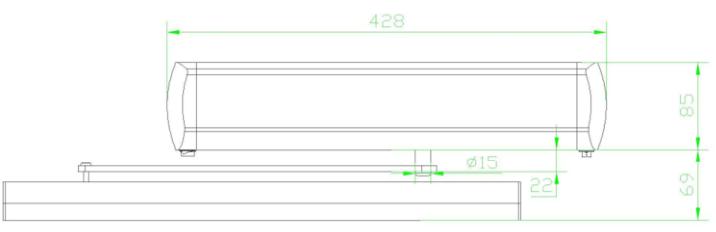

Drawing:
